Description

Product details

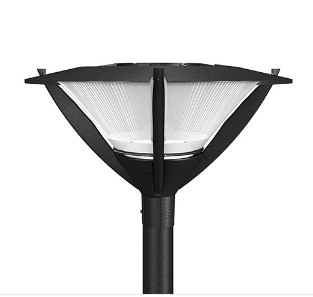

Product Description • The luminaire comprises of die cast aluminium body fixed into the frame with SS screws. • Top cover made up of 2 parts sealed together so as to obtain a high degree of protection. • Brite aluminium reflector is profiled for improved illumination efficiency. • Luminaire integrated with 30W LED. • Reeded clear acrylic diffuser. • Suitable for mounting on 76mm OD pipe. • Cable entries for through-wiring of mains supply cable. • Integral constant current power supply. • Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply. • Ordering guide : KL-5027-CCT (Colour Temperature). • Available CCT : 3000K, 4000K, 5700K.

Keywords

• KL
• 4000K
• 3000K
• frame
• wiring
• 30W LED
• 2 parts
• Ganthal
• 5027-CCT
• SS screws
• luminaire
• Top cover
• protection
• LED driver
• high degree
• 76mm OD pipe
• Available CCT
• Cable entries
• Ordering guide
• acrylic diffuser
• mains supply cable
• Colour Temperature
• Product Description
• cast aluminium body
• illumination efficiency
• Brite aluminium reflector
• 240V,50Hz single phase ac supply
• Integral constant current power supply
